Every Module Mapped to Its Clause — Plan, Operate, Evaluate & Improve
ISO 9001:2015 does not ask for a list of software modules. It asks whether you control documented information (7.5), whether you plan for risks and opportunities (6.1), whether nonconforming outputs are controlled (8.7) and whether corrective action actually closes the loop (10.2). Most quality software leaves the translation between "what the standard requires" and "where the evidence lives" to the quality manager, usually in a spreadsheet that is out of date by the time the auditor arrives.

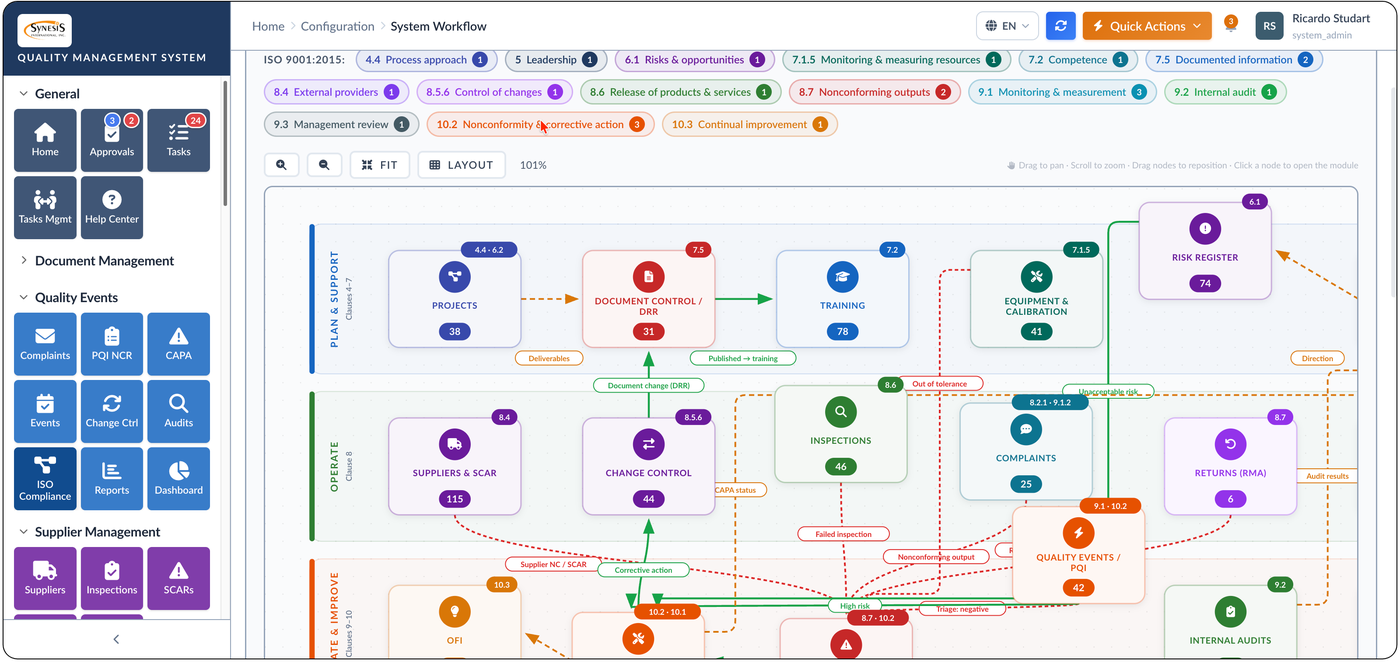

Synesis QMS builds that translation into the product. The System Workflow page draws the entire quality system on one canvas: eighteen module nodes arranged in the three lanes the standard implies — Plan & Support (clauses 4–7), Operate (clause 8) and Evaluate & Improve (clauses 9–10). Each node carries its ISO clause badge and a live record count pulled from the database. Green arrows show the planned flow between modules; orange feedback arrows show what happens when something goes wrong — a failed inspection raising a nonconformance, an out-of-tolerance calibration raising a quality event, an audit finding opening a CAPA.
Across the top, one chip per clause — 4.4 Process approach, 5 Leadership, 6.1 Risks & opportunities, 7.1.5 Monitoring & measuring resources, 7.2 Competence, 7.5 Documented information, 8.4 External providers, 8.5.6 Control of changes, 8.6 Release of products, 8.7 Nonconforming outputs, 9.1, 9.2, 9.3, 10.2 and 10.3 — highlights the modules that satisfy it. Click a node and the module opens. Click a chip and the evidence for that clause lights up. It is the audit walkthrough, built into the navigation.
ISO 9001:2015
Every module carries its clause badge: Document Control 7.5, Training 7.2, Equipment & Calibration 7.1.5, Suppliers 8.4, Change Control 8.5.6, Inspections 8.6, Nonconformance 8.7, Internal Audits 9.2, CAPA 10.2, OFI 10.3.
Evidence, Not Intent
Each node shows how many records exist and how many are open. An auditor asking "show me your corrective actions" gets a number and a click, not a promise to look it up.
Highlight by Requirement
Fifteen clause chips across the top of the canvas. Select 8.7 Nonconforming outputs and the Inspections, Nonconformance and Returns nodes highlight together with their feedback arrows.
Closed-Loop Quality
Planned hand-offs in green (published document → training, deliverables → document control). Corrective feedback in orange (failed inspection, supplier NC, unacceptable risk, audit results) so the loop is visible.
ISO 9001 · 14001 · 45001
The audit module's Coverage tab groups checklist lines and findings by the standard prefix in each clause reference. A combined management-system audit reports per standard without an Excel export.
Printable Summary
Below the canvas, a reference table lists every module, its clause, its purpose and its counts — the one-page system description that clause 4.4 asks for, generated from the live system.
Walk the standard clause by clause with the auditor. The chips, the nodes and the counts are the evidence index — no spreadsheet to reconcile the night before.
A clause with no highlighted module, or a module with zero records, is a gap you can see. Management review gets a picture of the system, not a list of KPIs.
New quality staff learn the system from the map: what feeds what, what happens when an inspection fails, where a supplier problem goes. Click the node, open the module.
Quality, environmental and safety audits share one checklist and one findings list, reported per standard. One audit, three certificates, no duplicate evidence.
Ask for a demo and walk the System Workflow map clause by clause with our quality team.
Request a QMS Demo
